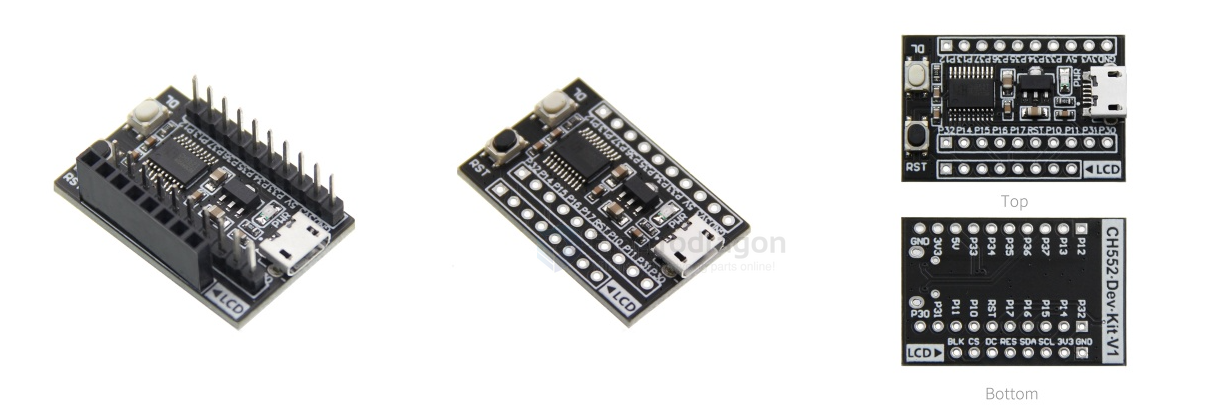

SPI LCD Test board
Product Features
- CPU: CH552T
- Main Frequency: 16MHz
- Internal FLASH: 16KB
- Internal SRAM: 256B
Advantages
- Rich development resources
- Simple and easy to learn, beginner-friendly
- Compact and elegant appearance, suitable for various DIY projects
Connectivity & Expansion
- Supports USB and serial download for convenient debugging
- Direct plug-in support for SPI and IIC display modules
- Expandable GPIO ports for connecting various peripherals
Documentation
- Comprehensive development materials provided
Demo Code Overview
-
Demo_CH552_Project_Template
- This is a project template program without any peripheral code. Use it as a base to create your own project.
-
IPS Screen Example Codes (8 Sizes Available)
- For each IPS screen size, there are four demo examples:
-
A. Demo_CH552_Clear_Screen
Demonstrates solid color fill. Displays five colors: black, white, red, green, and blue. -
B. Demo_CH552_Show_Font
Demonstrates text and symbol display. Shows Chinese, English, numbers, and symbols. -
C. Demo_CH552_Show_Graph
Demonstrates graphics display. Shows lines, dots, rectangles, circles, triangles, and black-and-white checkerboard patterns. -
D. Demo_CH552_Show_Picture
Demonstrates image display. Shows a full-screen 40x40 pixel image.
-
A. Demo_CH552_Clear_Screen
- For each IPS screen size, there are four demo examples:
-
HEX File Directory
- Contains compiled HEX files for all 8 IPS screen sizes.
- No need to search for HEX files in the example projects; simply use USB or serial to download the HEX files from this directory.
- For detailed download instructions, refer to the documentation in the "Download Methods" folder of the resource
- Contains compiled HEX files for all 8 IPS screen sizes.
