Multiple-series protector (translated table)
| Model | Package | Overcharge Protect V (V) | Overcharge Recover V (V) | Overdischarge Protect V (V) | Overdischarge Recover V (V) | Discharge OCP Detect (mV) | Charge OCP Detect (mV) | Short-circuit Detect V (V) | Other features | Cell count |
|---|---|---|---|---|---|---|---|---|---|---|
| TC2120-CB | SOT23-6 | 4.28 ±0.025 | 4.08 ±0.05 | 2.90 ±0.08 | 3.00 ±0.10 | 200 ±30 | -210 ±30 | 1.0 ±0.4 | 0V charge / sleep function | 2 cells |
| TC2120-DB | SOT23-6 | 4.28 ±0.025 | 4.08 ±0.05 | 2.25 ±0.08 | 2.95 ±0.10 | 200 ±30 | -210 ±30 | 1.0 ±0.4 | 0V charge / sleep function | 2 cells |
| TC2120-HB | SOT23-6 | 4.40 ±0.025 | 4.18 ±0.05 | 3.00 ±0.08 | 3.10 ±0.10 | 200 ±30 | -210 ±30 | 1.0 ±0.4 | 0V charge / sleep function | 2 cells |
| TC2120-LB | SOT23-6 | 4.225 ±0.025 | 4.10 ±0.05 | 2.50 ±0.08 | 3.00 ±0.10 | 200 ±30 | -170 ±30 | 1.0 ±0.4 | 0V charge / sleep function | 2 cells |
| TC2120-FB | SOT23-6 | 4.30 ±0.025 | 4.10 ±0.05 | 2.90 ±0.08 | 3.00 ±0.10 | 200 ±30 | -210 ±30 | 1.0 ±0.4 | 0V charge / sleep function | 2 cells |
| TC2120-NB | SOT23-6 | 4.28 ±0.025 | 4.08 ±0.05 | 2.80 ±0.08 | 3.00 ±0.10 | 200 ±30 | -210 ±30 | 1.0 ±0.4 | 0V charge / auto over‑discharge recovery | 2 cells |
| FM702A | SOT23-6 | 4.35 ±0.025 | 4.15 ±0.05 | 2.30 ±0.08 | 3.00 ±0.10 | 200 ±30 | -150 ±30 | 1.2 ±0.4 | 0V charge / auto over‑discharge recovery | N/A |
| FM7021CB | SOT23-6 | 4.28 ±0.025 | 4.08 ±0.05 | 2.90 ±0.08 | 3.00 ±0.10 | 200 ±30 | -170 ±50 | 1.0 ±0.4 | 0V charge / auto over‑discharge recovery | N/A |
| FM7021DB | SOT23-6 | 4.28 ±0.025 | 4.08 ±0.05 | 2.25 ±0.08 | 2.95 ±0.10 | 200 ±30 | -170 ±50 | 1.0 ±0.4 | 0V charge / auto over‑discharge recovery | N/A |
| FM7021NB | SOT23-6 | 4.28 ±0.025 | 4.08 ±0.05 | 2.80 ±0.08 | 3.00 ±0.10 | 200 ±30 | -170 ±50 | 1.0 ±0.4 | 0V charge / auto over‑discharge recovery | N/A |
| FM7021HB | SOT23-6 | 4.40 ±0.025 | 4.18 ±0.05 | 3.00 ±0.08 | 3.10 ±0.10 | 200 ±30 | -170 ±50 | 1.0 ±0.4 | 0V charge / auto over‑discharge recovery | N/A |
| FM7021LB | SOT23-6 | 4.225 ±0.025 | 4.10 ±0.05 | 2.50 ±0.08 | 3.00 ±0.10 | 200 ±30 | -170 ±50 | 1.0 ±0.4 | 0V charge / auto over‑discharge recovery | N/A |
| FM8254AAV | TSSOP-16 | 4.25 ±0.025 | 4.15 ±0.08 | 2.70 ±0.08 | 3.00 ±0.10 | 200 ±25 | / | 1.1 ±0.3 | 0V charge / sleep function | 3/4 cells |
| FM3450C | SOP-8 | 4.25 ±0.025 | 4.10 ±0.08 | 2.70 ±0.08 | 3.00 ±0.10 | 100 ±10 | / | 0.450 ±0.10 | None | 3 cells |
| FM03CA | SOP-8 | 4.25 ±0.025 | 4.10 ±0.08 | 2.70 ±0.08 | 3.00 ±0.10 | 100 ±10 | -50 ±15 | 0.450 ±0.10 | Sleep function | 3 cells |
| 3452D | SOP-16 | 4.25 ±0.025 | 4.10 ±0.08 | 2.70 ±0.08 | 3.00 ±0.10 | 100 ±15 | -50 ±15 | 0.8 ±0.16 | Sleep function | 3 cells |
| FM03S | TSSOP-16 | 4.25 ±0.025 | 4.10 ±0.08 | 2.70 ±0.08 | 3.00 ±0.10 | 100 ±15 | -50 ±15 | 0.8 ±0.16 | Sleep function | 3 cells |
| TC3451T (FM04S) | TSSOP-16 | 4.25 ±0.025 | 4.10 ±0.05 | 2.80 ±0.08 | 3.00 ±0.10 | 100 ±15 | -50 ±15 | 0.8 ±0.16 | Sleep function | 4 cells |
| FM05S-16S | TSSOP-16 | 4.25 ±0.025 | 4.16 ±0.05 | 2.50 ±0.08 | 2.90 ±0.10 | 100 ±15 | -50 ±15 | 0.8 ±0.16 | Sleep function | 5 cells |
| FM05S-16 | SOP-16 | 4.25 ±0.025 | 4.16 ±0.05 | 2.50 ±0.08 | 2.90 ±0.10 | 100 ±15 | -50 ±15 | 0.8 ±0.16 | Sleep function | 5 cells |
| FM3551 | TSSOP-20 | 4.25 ±0.025 | 4.10 ±0.05 | 2.80 ±0.08 | 3.00 ±0.10 | 100 ±15 | -50 ±15 | 0.8 ±0.16 | Reduced sense resistor | 4/5 cells |
| FM3551R | TSSOP-20 | 4.25 ±0.025 | 4.10 ±0.05 | 2.80 ±0.08 | 3.00 ±0.10 | 100 ±15 | -50 ±15 | 0.4 ±0.10 | Cascadeable | 4/5 cells |
| FM3551-S14A | SOP-14 | 4.25 ±0.025 | 4.10 ±0.05 | 2.80 ±0.08 | 3.00 ±0.10 | 100 ±15 | -50 ±15 | 0.8 ±0.16 | Reduced sense resistor | 5 cells |
| FM3551-S16A | SOP-16 | 4.25 ±0.025 | 4.10 ±0.05 | 2.80 ±0.08 | 3.00 ±0.10 | 100 ±15 | -50 ±15 | 0.8 ±0.16 | Reduced sense resistor | 5 cells |
| FM3551-T14A | TSSOP-14 | 4.25 ±0.025 | 4.10 ±0.05 | 2.80 ±0.08 | 3.00 ±0.10 | 100 ±15 | -50 ±15 | 0.8 ±0.16 | Reduced sense resistor | 5 cells |
| FM3551-T16A | TSSOP-16 | 4.25 ±0.025 | 4.10 ±0.05 | 2.80 ±0.08 | 3.00 ±0.10 | 100 ±15 | -50 ±15 | 0.8 ±0.16 | Reduced sense resistor | 5 cells |
| FM05S | TSSOP-20 | 4.25 ±0.025 | 4.10 ±0.05 | 2.80 ±0.08 | 3.00 ±0.10 | 100 ±15 | -50 ±15 | 0.8 ±0.16 | Sleep function | 4/5 cells |
| FM05PF | TSSOP-20 | 3.75 ±0.025 | 3.60 ±0.07 | 2.20 ±0.08 | 2.40 ±0.10 | 100 ±15 | -50 ±15 | 0.4 ±0.10 | Sleep function | 4/5 cells |
| FM06S | SSOP-24 | 4.25 ±0.025 | 4.10 ±0.05 | 2.80 ±0.08 | 3.00 ±0.10 | 100 ±15 | -50 ±15 | 0.8 ±0.16 | Sleep function | 6 cells |
| FM07S | SSOP-24 | 4.25 ±0.025 | 4.10 ±0.05 | 2.80 ±0.08 | 3.00 ±0.10 | 100 ±15 | -50 ±15 | 0.8 ±0.16 | Sleep function | 7 cells |
| FM10S | SSOP-24 | 4.25 ±0.025 | 4.10 ±0.05 | 2.80 ±0.08 | 3.00 ±0.10 | 100 ±15 | -50 ±15 | 0.8 ±0.16 | Sleep function | 10 cells |
| FM15S | QFN-48 | 4.25 ±0.025 | 4.10 ±0.05 | 2.80 ±0.08 | 3.00 ±0.10 | 100 ±15 | -50 ±15 | 0.8 ±0.16 | Sleep function | 12–15 cells |
| FM15L | QFN-48 | 3.85 ±0.025 | 3.75 ±0.05 | 2.00 ±0.08 | 2.50 ±0.10 | 100 ±15 | -50 ±15 | 0.8 ±0.16 | Sleep function | 12–15 cells |
| FM20S | QFN-64 | 4.25 ±0.025 | 4.10 ±0.05 | 2.80 ±0.08 | 3.00 ±0.10 | 100 ±15 | -50 ±15 | 0.8 ±0.16 | Sleep function | 16–20 cells |
| FM3757 | TSSOP-16 | 4.25 ±0.015 | 4.15 ±0.05 | 2.70 ±0.05 | 3.00 ±0.08 | 50 ±5 | -25 ±5 | 0.2 ±0.04 | With balancing | 7 cells |
| FM3754 | TSSOP-16 | 4.25 ±0.015 | 4.15 ±0.05 | 2.70 ±0.05 | 3.00 ±0.08 | 50 ±5 | -25 ±5 | 0.2 ±0.04 | With balancing | 4 cells |
| FM3755 | TSSOP-16 | 4.25 ±0.015 | 4.15 ±0.05 | 2.70 ±0.05 | 3.00 ±0.08 | 50 ±5 | -25 ±5 | 0.2 ±0.04 | With balancing | 5 cells |
| FM3756 | TSSOP-16 | 4.25 ±0.015 | 4.15 ±0.05 | 2.70 ±0.05 | 3.00 ±0.08 | 50 ±5 | -25 ±5 | 0.2 ±0.04 | With balancing | 6 cells |
| FM3551R-S16A | SOP-16 | 4.25 ±0.025 | 4.10 ±0.05 | 2.80 ±0.08 | 3.00 ±0.10 | 100 ±15 | -50 ±15 | 0.4 ±0.10 | Cascadeable | 4/5 cells |
| FM6022 | SOP-10 | 4.225 | 4.025 | 2.700 | 3.000 | 0.100 | -0.100 | 0.4 ±0.10 | / | 2 cells |
| FM03DB | SOP-8 | 4.250 | 4.050 | 2.700 | 3.000 | 0.100 | -0.065 | 0.400 | 3 cells | |
| FM8254B | TSSOP-16 | 4.25 ±0.025 | 4.15 ±0.08 | 2.70 ±0.08 | 3.0 ±0.1 | 200 ±25 | / | 1.1 ±0.3 | 0V charge / sleep function | 3/4 cells |
| TC2135 | SOP-10 | 4.225 ±0.025 | 4.10 ±0.05 | 2.700 ±0.08 | 3.00 ±0.10 | 100 ±5 | / | 0.200 ±0.04 | / | 5 cells |

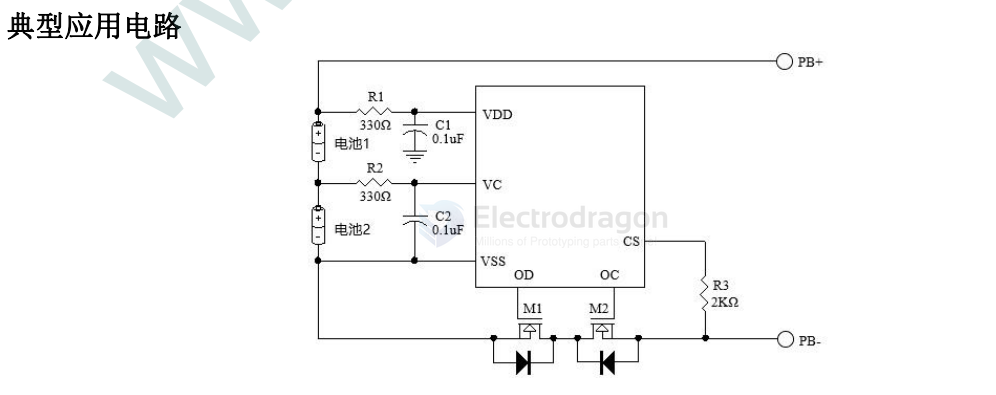

FM7021
FM7021 是一款内置高精度电压检测电路和延时电路，适用于 2 节串联锂离子/锂聚合物可再充电电池的保护 IC。
此 IC 适合于对 2 节串联可再充电锂离子/锂聚合物电池的过充电、过放电、过电流、负载短路进行保护。
应用领域
- 2 节串联锂离子可再充电电池组
- 2 节串联锂聚合物可再充电电池组

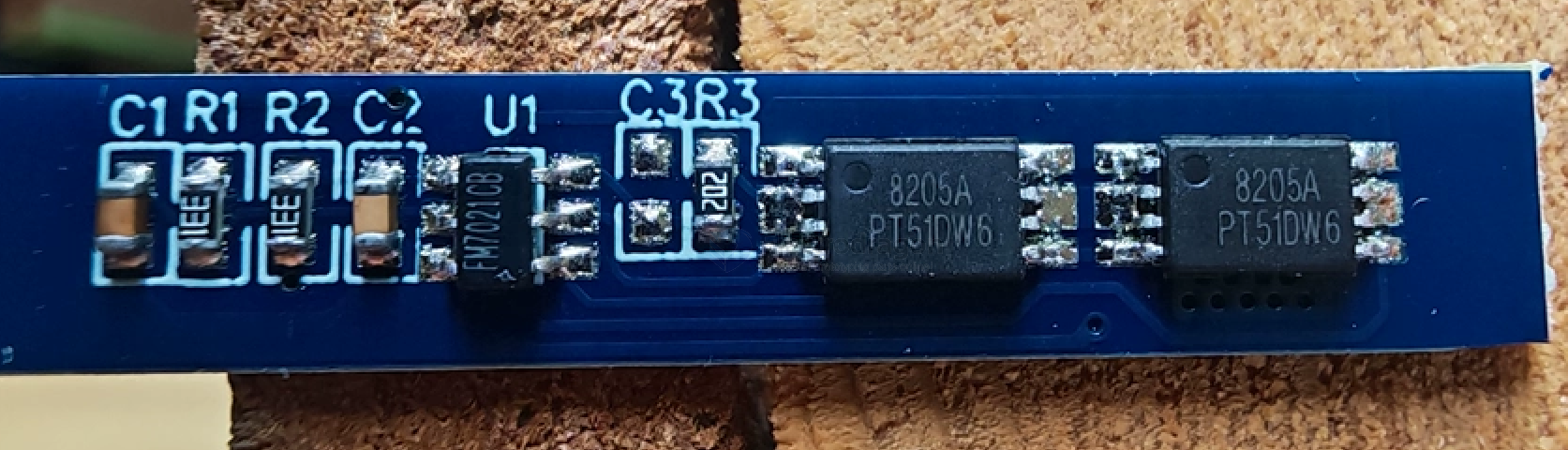

real board
