product url - 6DOF MPU-6500 Breakout, 3D Accelero + Gyro
Board Map, Dimension, Pins, chip info, Use Guide, Setup Jumper, etc.

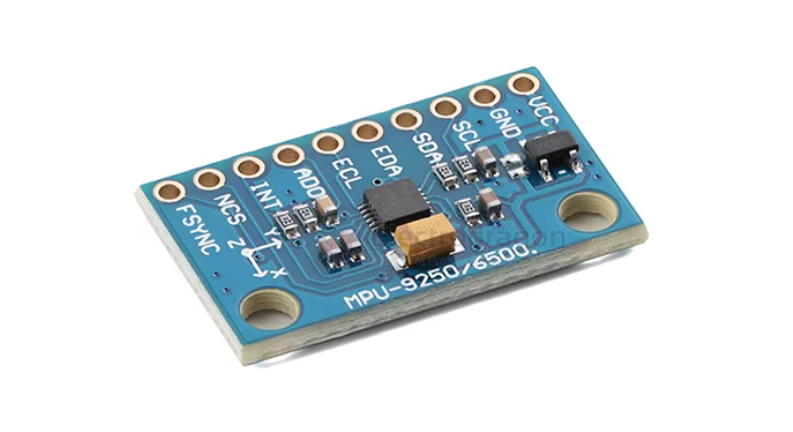

Pin Descriptions
- VCC: Positive Power Supply
- GND: Negative Power Supply
- SCL: IIC Clock Signal Line
- SDA: IIC Data Signal Line
- EDA: IIC Master Serial Data, used to connect to external sensors
- ECL: IIC Master Serial Clock, used to connect to external sensors
- ADO: IIC Slave Address Pin
- INT: Interrupt Digital Pin
- NCS: Chip Select (SPI Mode Only)
- FSYNC: Frame Synchronization Digital Input. Connect to GND if not used.
