product url - TB6600 Stepper Drive Mstep-32, 4A, 42VDC

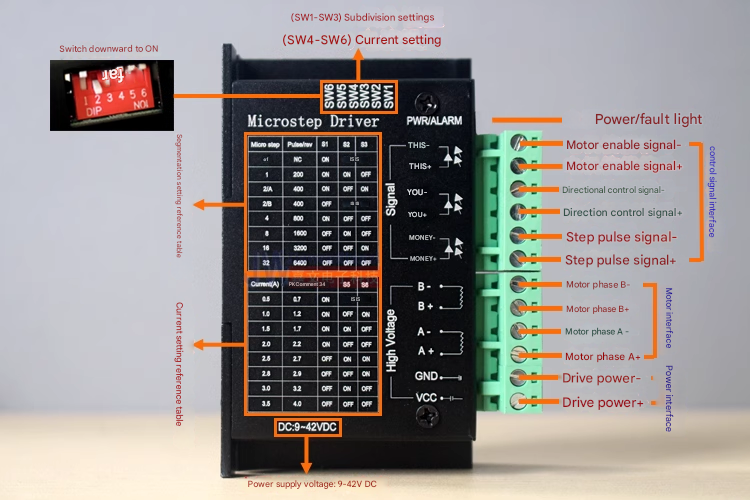

Board Map, Dimension, Pins, etc.
Product Features
- DC 9-42V power supply (recommended 12-24V)
- Control signal input voltage 3.3V-24V universal
- 6 subdivision precisions available
- Output peak current up to 4.0A (suitable for 1.8NM and below 57, 42 stepper motors) - torque-dat
- H-bridge bipolar constant current drive
- Input signal high-speed optocoupler isolation
- Built-in temperature protection and overcurrent protection
- Automatic half-current to reduce heat
- Motor noise optimization function
- Compact size saves space
Electrical environment
- Cooling method: Natural cooling or forced air cooling.
- Occasion: Do not place it next to other heating equipment. Avoid dust, oil, corrosive gas, high humidity and strong earthquake. Combustible gas and conductive dust are prohibited.
- Humidity: 40-90% RH
- Vibration: 10-55Hz/0.15mm
- Storage temperature: -20-65℃
- Weight: 0.15KG

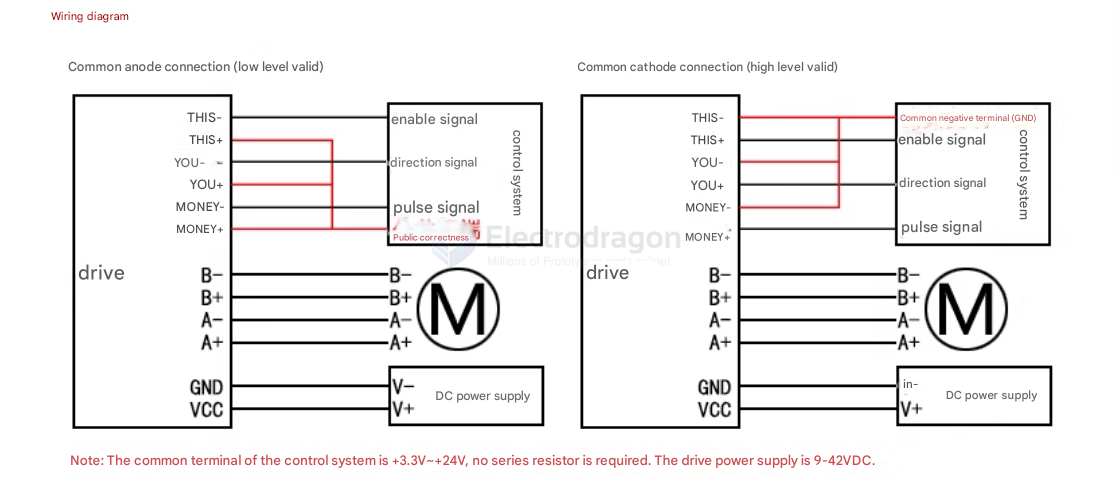

wiring to use

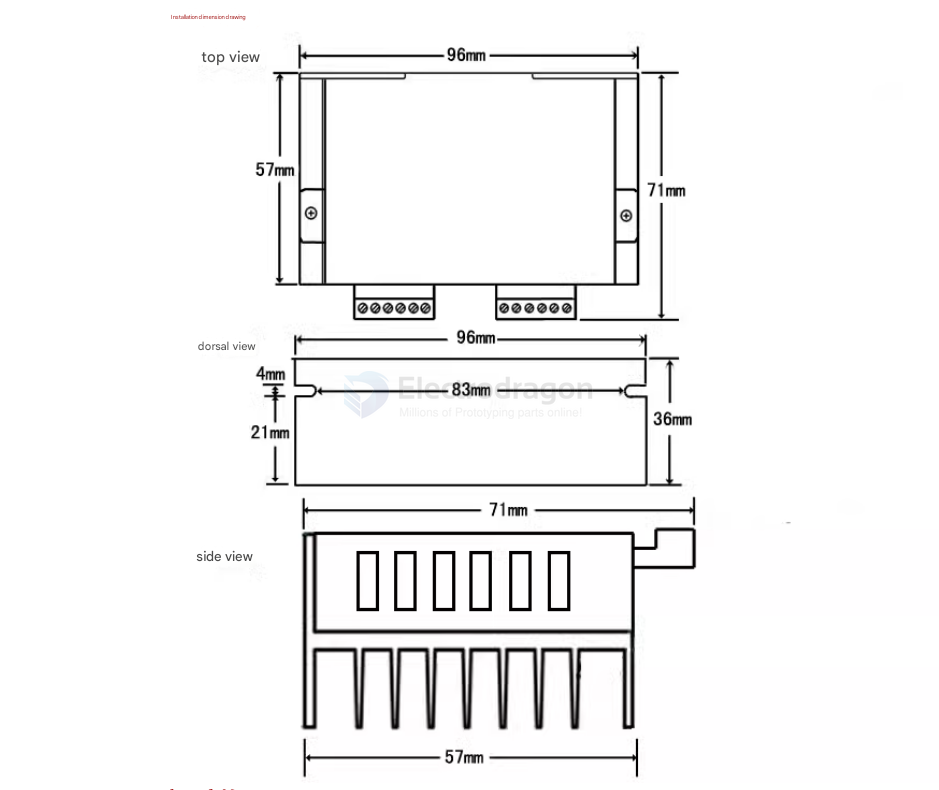

dimension
