Info
product url - L293D Arduino Motor Shield
This shield has an L293D IC, a dual H-bridge motor driver integrated circuit (IC), which allows it to drive
- two DC motors,
- a stepper motor,
- or a servo motor.
Key Features of the L293D Motor Driver Shield
- Dual H-Bridge IC: The L293D IC can control up to two DC motors or one stepper motor. It provides bidirectional control for two motors independently.
- Current Handling: Each channel of the L293D can handle up to 600mA of continuous current and peak currents up to 1.2A per channel.
- Voltage Range: The shield can operate at a wide range of voltages, typically from 4.5V to 36V.
- Protection Diodes: The shield has built-in diodes to protect the IC from back EMF generated by the motors.
- PWM Control: Supports Pulse Width Modulation (PWM) for speed control of the motors.

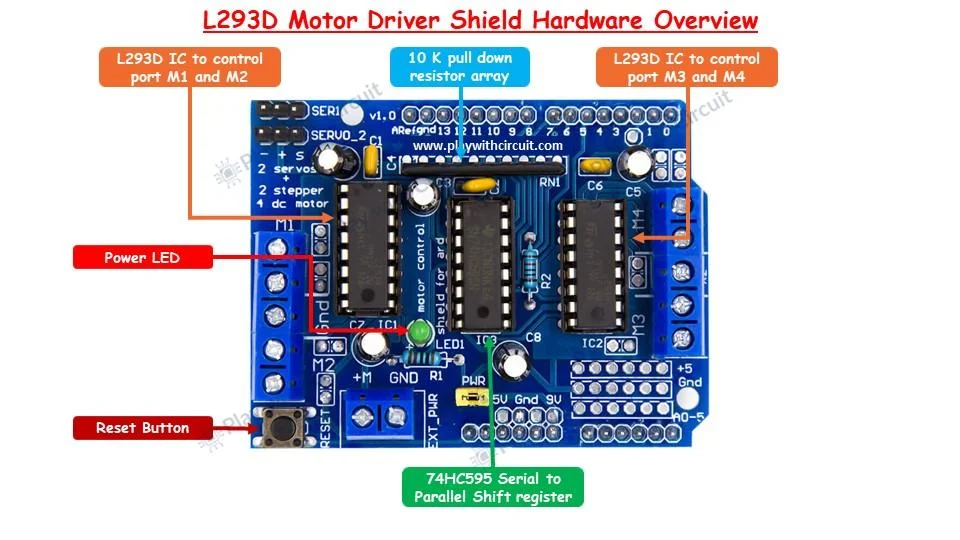

Board Map, Dimension, Pins, etc.

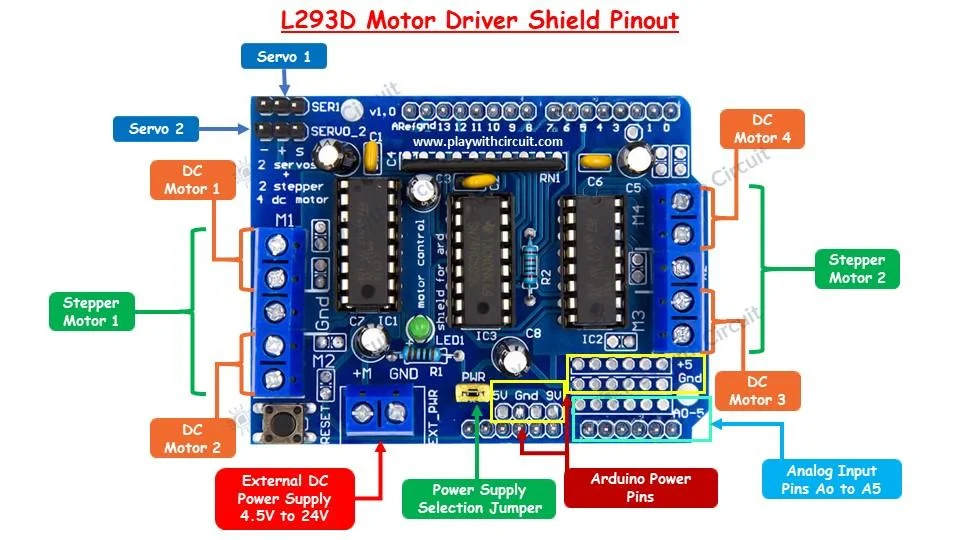

Pin Definitions
| Pin No. of Connector | Pin Name | Arduino Pin | Functionality |
|---|---|---|---|
| J1-1 | - | D0 | - |
| J1-2 | - | D1 | - |
| J1-3 | - | D2 | - |
| J1-4 | PWM2B | D3 | Enable pin of L293D IC controlling port M2 |
| J1-5 | DIR_CLK | D4 | Clock Pin of 74HC595 |
| J1-6 | PWM0B | D5 | Enable Pin of L293D IC controlling port M3 |
| J1-7 | PWM0A | D6 | Enable Pin of L293D IC controlling port M4 |
| J1-8 | DIR_EN | D7 | Enable Pin of 74HC595 |
| J3-1 | DIR_SER | D8 | Serial Data Input Pin of 74HC595 |
| J3-2 | PWM1A | D9 | PWM control pin of Second Servo Port(SERVO_2) |
| J3-3 | PWM1B | D10 | PWM control pin of First Servo Port(SER1) |
| J3-4 | PWM2A | D11 | Enable pin of L293D IC controlling port M1 |
| J3-5 | DIR_LATCH | D12 | Latch Pin of 74HC595 |
| J3-6 | - | D13 | - |
| J3-7 | Gnd | Gnd | Ground |
| J3-8 | - | Aref | - |

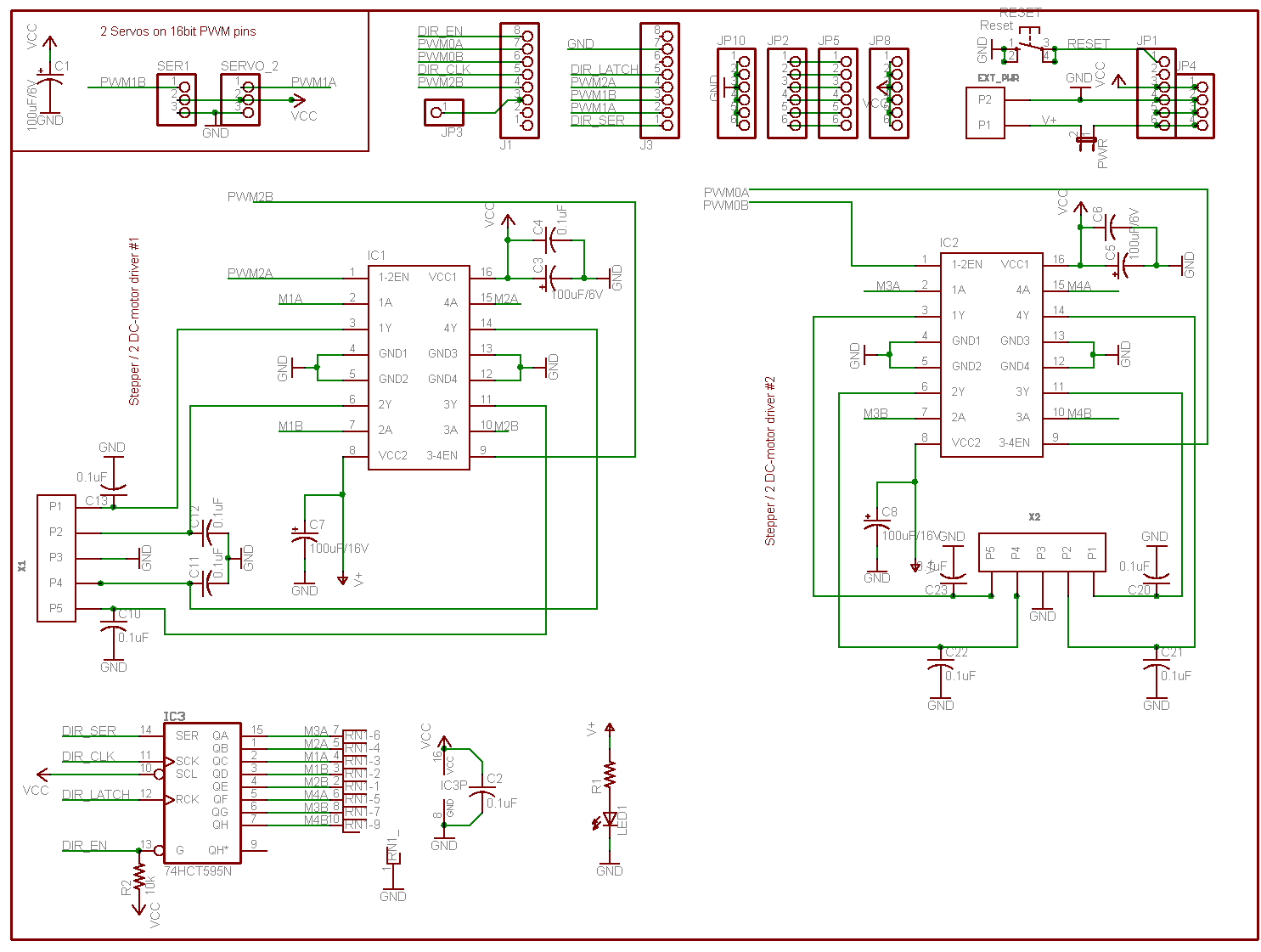

Schematic
Applications, category, tags, etc.
Demo Code and Video
somewhere here: https://github.com/Edragon/arduino-esp8266/tree/master/BSP/SDR/SDR1060-M4
