Info
product url - L298N DC PWM Motor Driver Board, Stepper, L298
Applications, category, tags, etc.

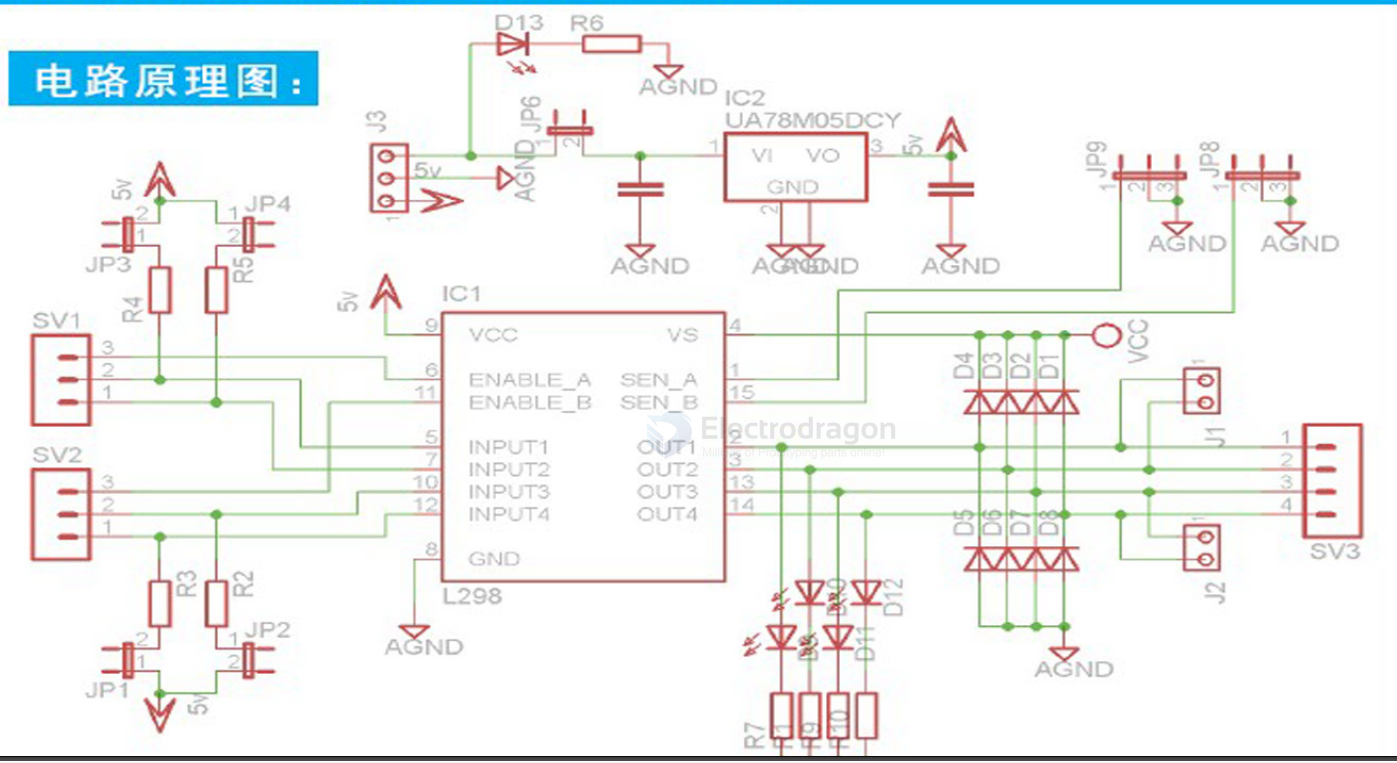

SCH
Jumper
- CSA: Current sense pin for Motor A. A resistor can be connected in series here to sense current, or it can be directly jumpered to ground to disable current sensing.
- CSB: Current sense pin for Motor B. A resistor can be connected in series here to sense current, or it can be directly jumpered to ground to disable current sensing.
- 5V-EN: When the jumper is installed, the onboard 78M05 regulator operates, providing a 5V power output to supply the logic circuits. If the jumper is removed, an external 5V power supply is required to power the logic circuits.

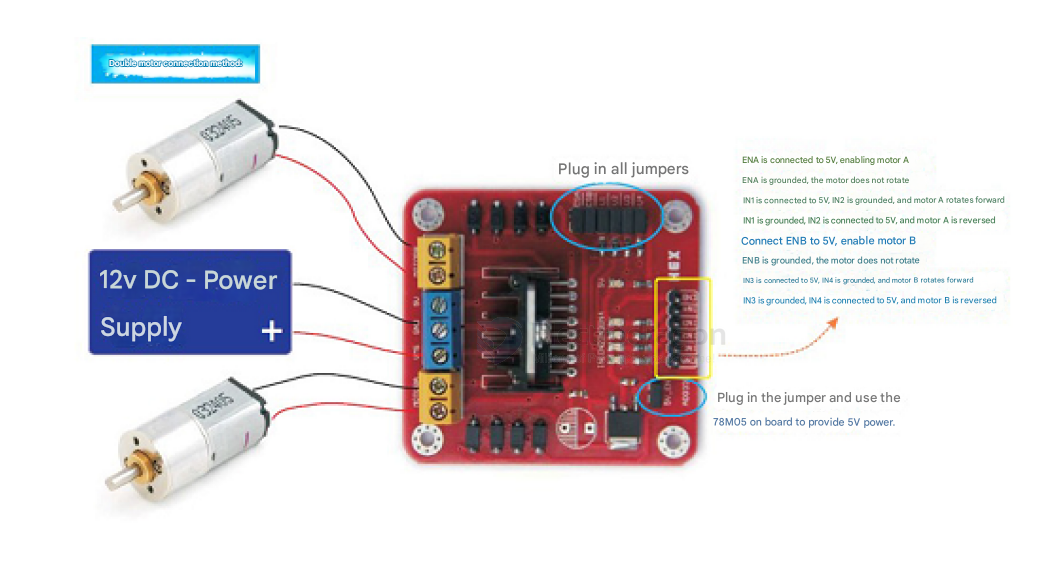

wiring

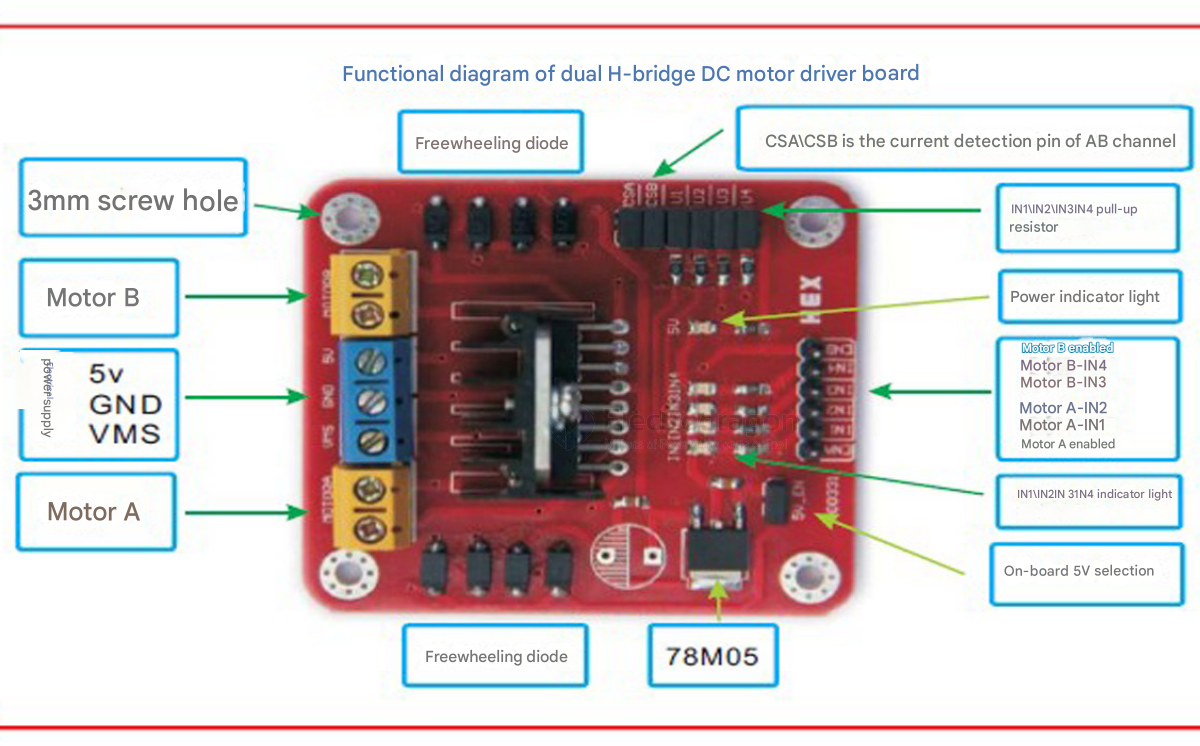

board map
Demo Code and Video
ref
legacy wiki page
