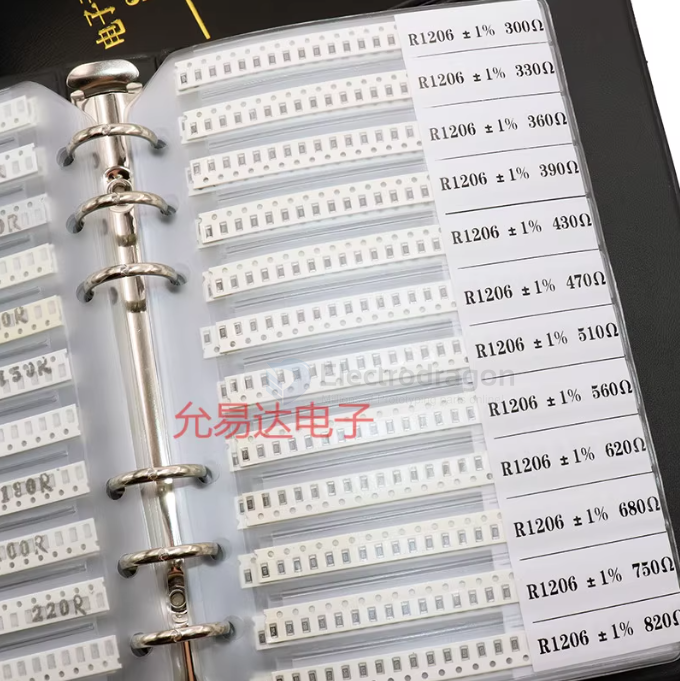

Note the book is empty, no components included. Images for demo only.
Info
product url - SMD Collecting booklet / Sample Book
Board Map, Dimension, Pins, chip info, Use Guide, Setup Jumper, etc.
SMD Capacitor and Resistor Component Book, Sample Book, Empty Electronic Component Book
Size specifications: Cover: Length 19 cm x Width 13.5 cm, cover without company name, neutral packaging

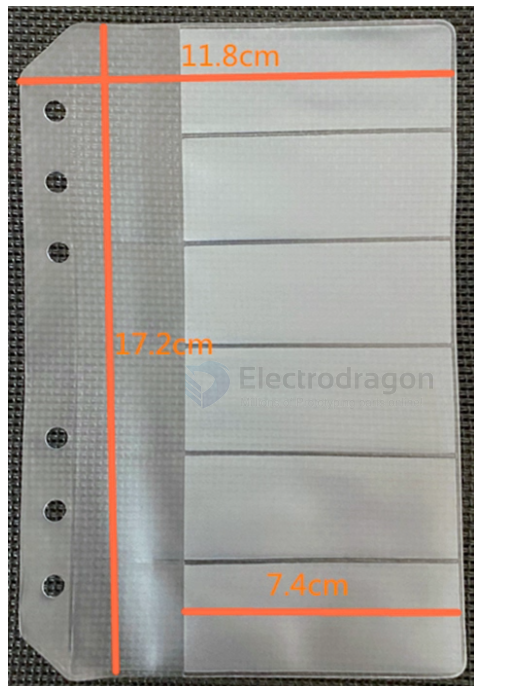

Inner pages: Length 17.2 cm x Width 11.8 cm (covered area 7.4 cm)
Specification 1: Divided into 6 rows on average, each row about 28mm high, especially suitable for slightly wider SMD tape components
the current selling version is 12-row per page
small size version == 12-row per page
Every page is diverted into 12 lines, every line is about 14.75 height
large size version == 6-row per page
Note: 6 columns bigger inner page (refer to standard version’s last page) booklet is the same price, if you need only bigger inner page version, please just add order note.
Every line is 29.5 height.
