- OLED-dat == 1.3" RAW OLED
https://www.electrodragon.com/product/1-3-oled-display-mini-shield-for-raspberry-pi/

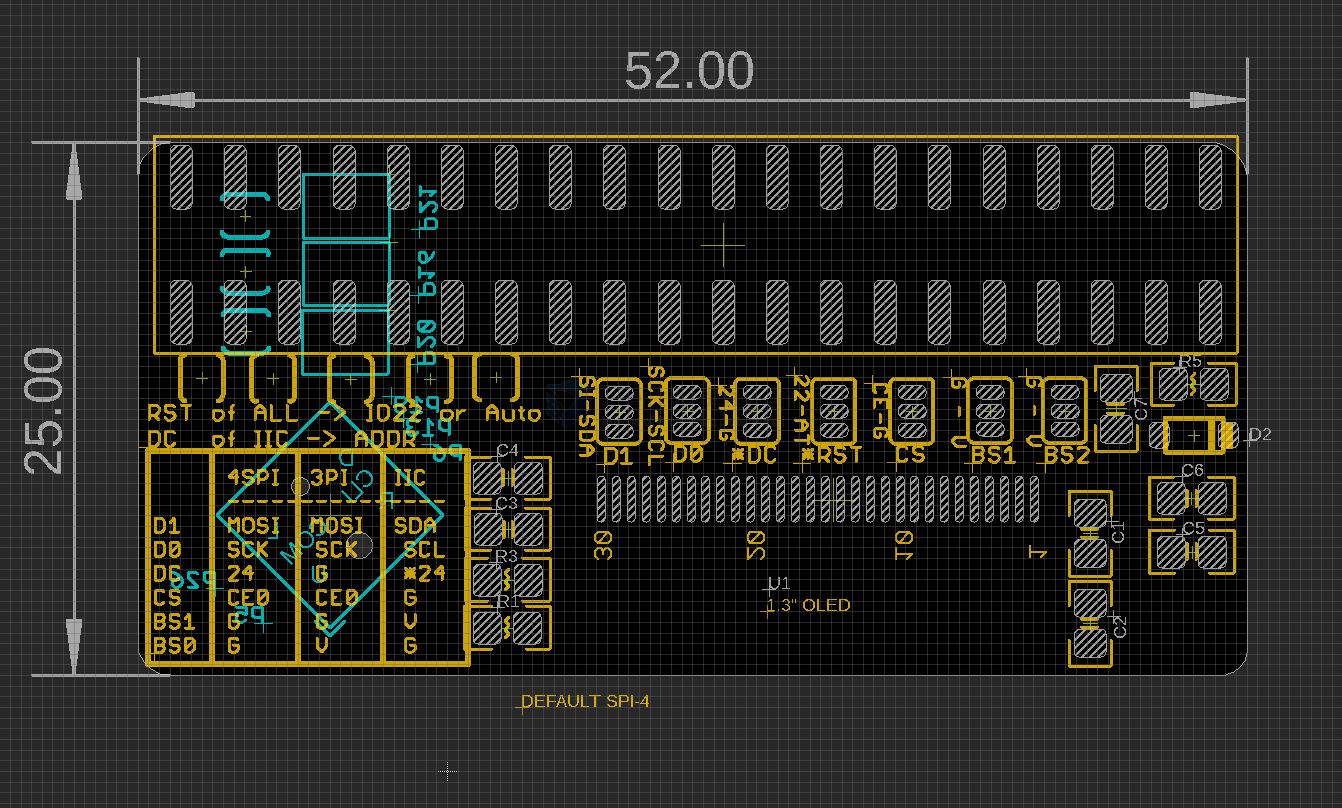

Board map
| Button | RPI IO Pins |
|---|---|
| push 1 | 16 |
| push 2 | 20 |
| push 3 | 21 |
| joystick_up | 6 |
| joystick_down | 26 |
| joystick_left | 5 |
| joystick_right | 19 |
| joystick_press | 13 |
quick guide
- Please use default examples, python version 3, so >python3 demo.py
- Default setup is 4 Line SPI
- No need to soldering anythings if you want to quick start
- change modes please refer below
setup
| SSD1306 pin | Function | I2C | SPI-3_Wire | SPI-4_Wire |
|---|---|---|---|---|
| BS0 | Interface select 1 | 0 | 1 | 0 |
| BS1 | Interface select 2 | 1 | 0 | 0 |
| CS | NC (ground) for I2C / SPI_CS | 0 | CS: RPI_CE0 | CS: RPI_CE0 |
| DC | ADDRESS / NC for / SPI_D/C Control | ADDRESS: 0/1 | NC | D/C Control |
| D0 | I2C_SCL / SPI_CLK | I2C_SCL | SPI_CLK | SPI_CLK |
| D1 | I2C_SDA / SPI_MOSI | I2C_SDA | SPI_MOSI | SPI_MOSI |
| RST | Reset by RPI pin IO25 or auto_reset | - | - | - |
demo code
- https://github.com/Edragon/RPI, In Display folder
