product url - 10PCs SMD5050 RGB LED
Board Map, Dimension, Pins, chip info, Use Guide, Setup Jumper, etc.

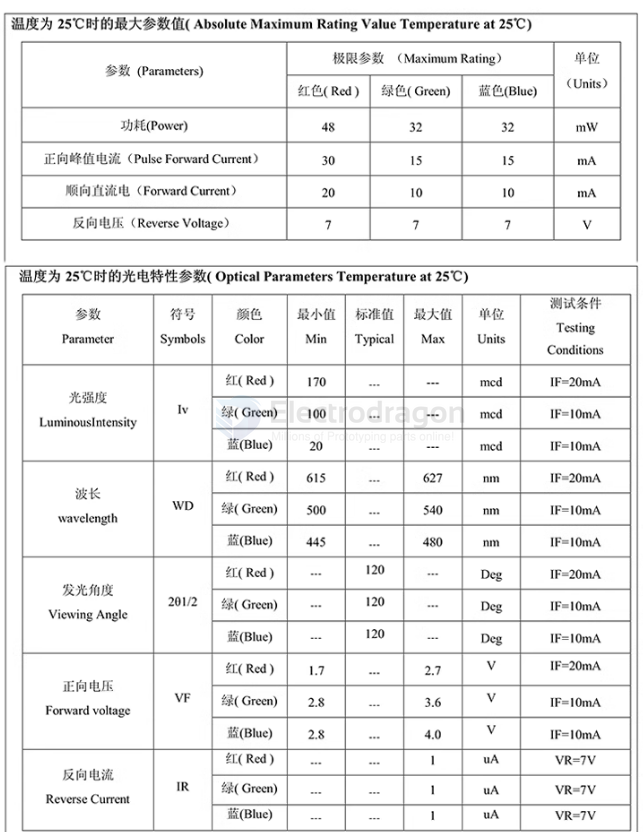

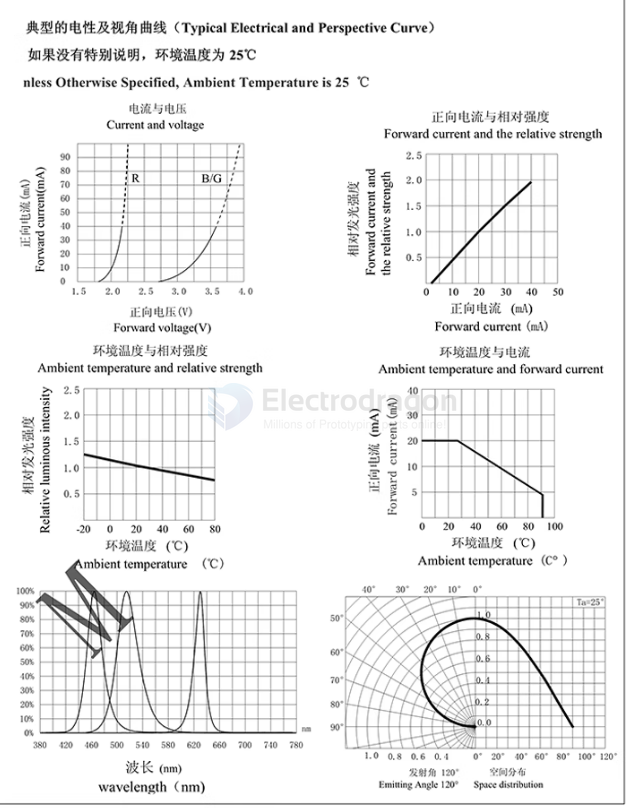

Working voltage:
- R 1.9 – 2.1 V
- G 3.0 -3.2V
- B 3.0 – 3.2V
Working current: 52-55 mA

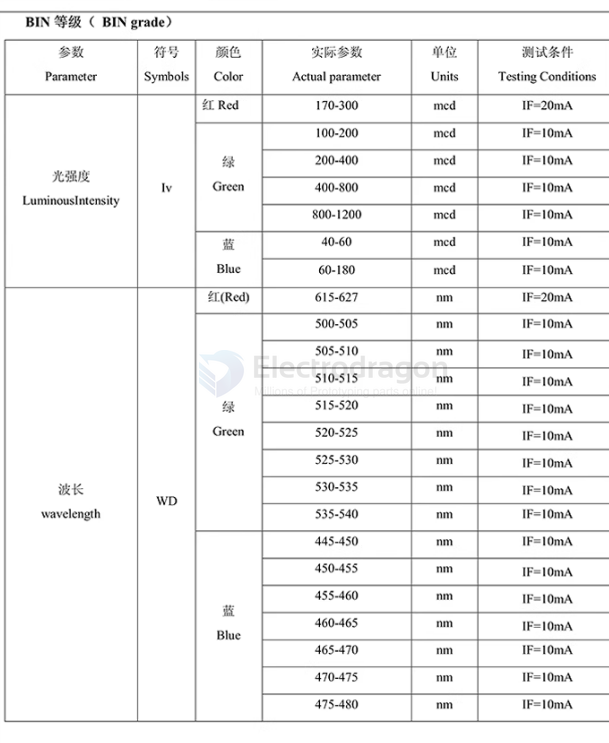

Product lightness:
- R 400-500
- G 1000-1200
- B 300-400 (MCD)
Product wavelength:
- R 620-625
- G 520-525
- B 465 – 470
Working angle:130-140 degree

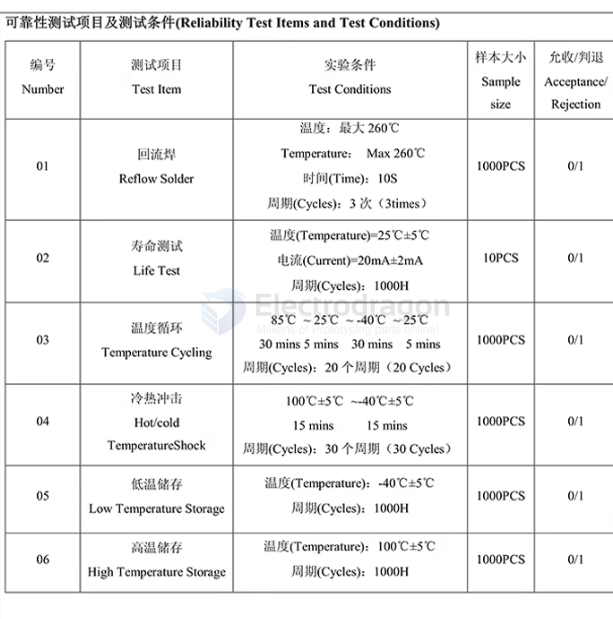

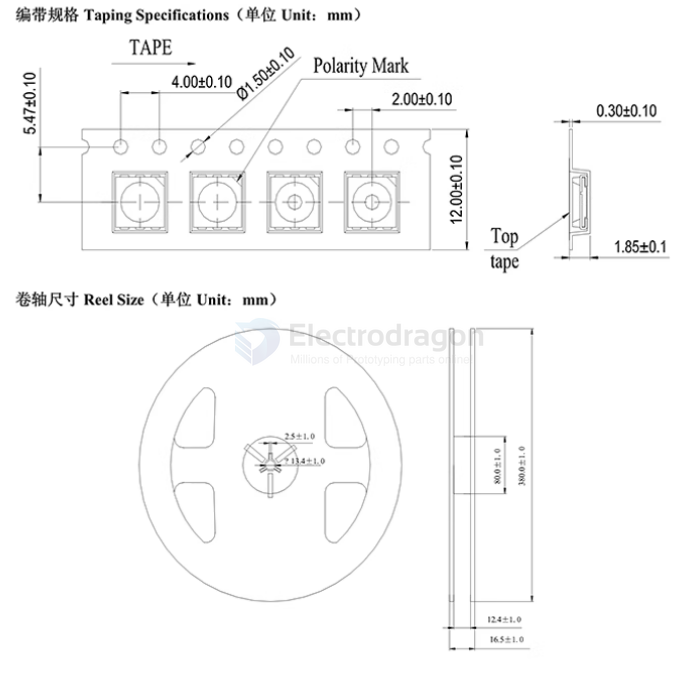

Notice: solder temperature should not higher than 260 degree

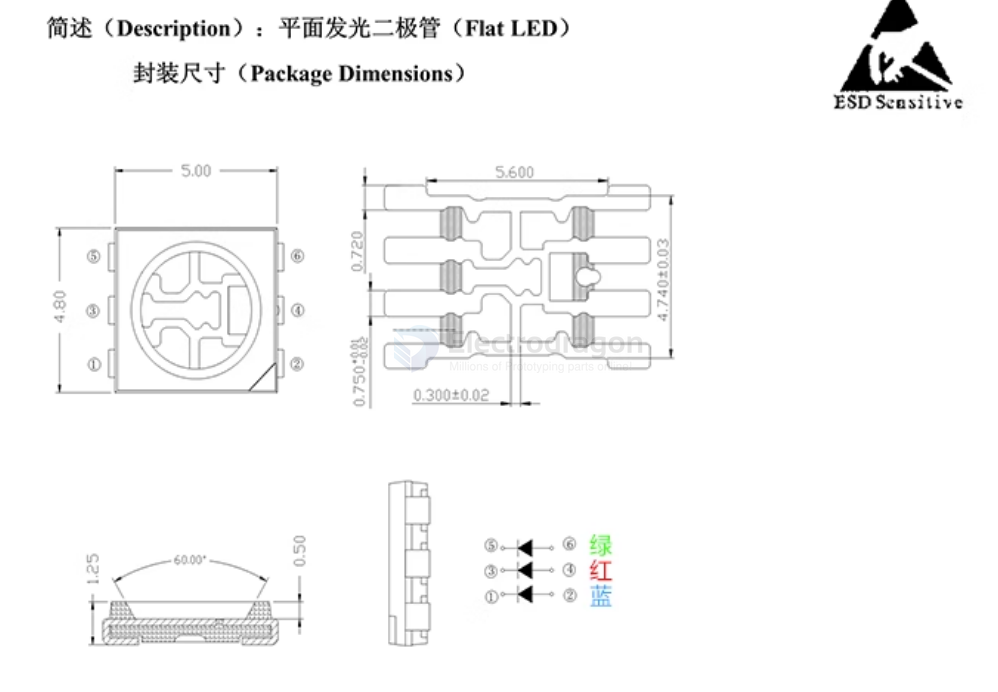

Pin 1, 2, 3 on > side is GND, and pin 4, 5, 6 is RGB VCC in.
Applications, category, tags, etc.
Demo Code and Video
- The eagle library file is here for downloading. - Board-dat/ILE/ILE1002-dat/RGB-LED-Library-eagle.zip
