transformer specs

for - VIPER22-dat

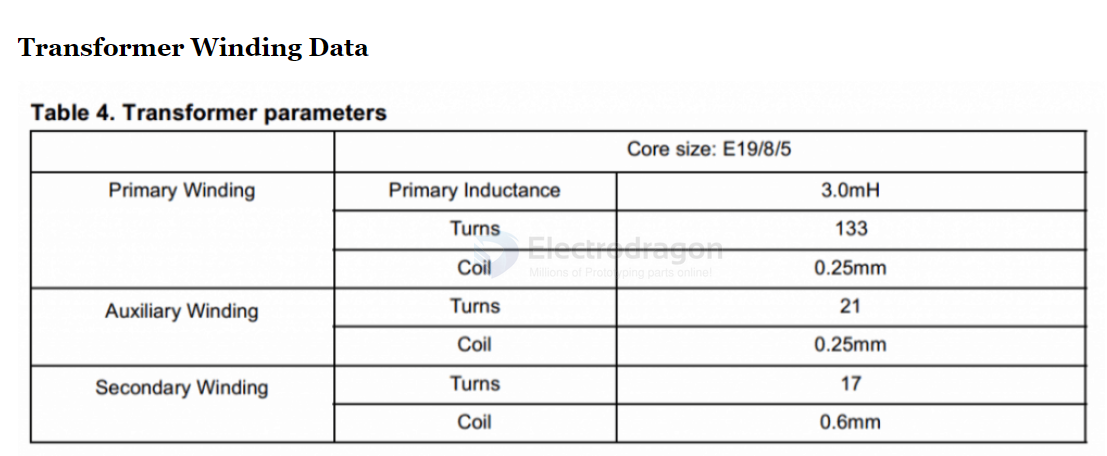

• Primary Winding
• Auxiliary Winding
• Secondary Winding

wiring

The transformer winding is actually quite straightforward, and may be done in the following manner.

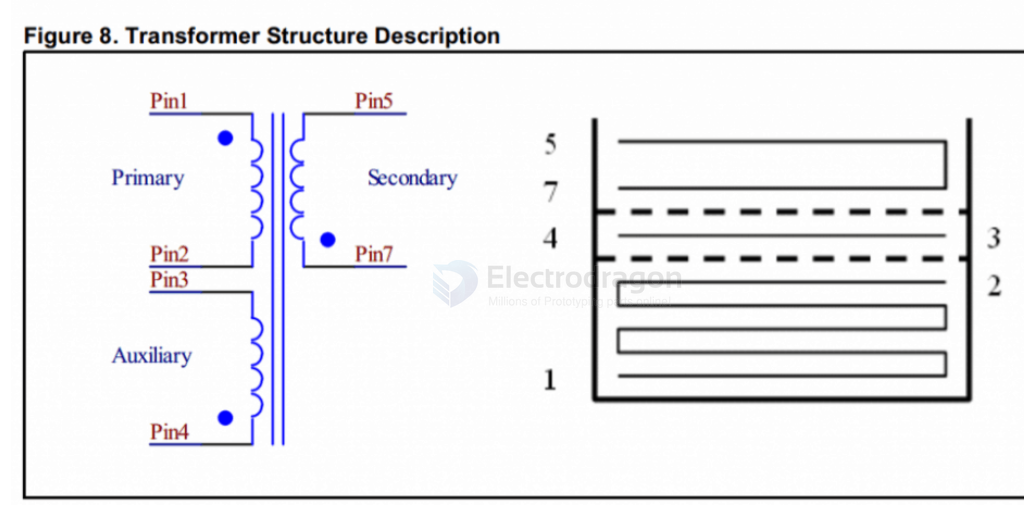

Keep in mind that the black dots indicate the start points of the winding which is very important, and must be strictly followed while winding the transformer.

• The primary wound using 36 SWG super enameled copper wire upto 150 turns,
• while the secondary is wound using 26 SWG wire upto around 12 to 15 turns.

The core can be a standard E19 type ferrite core having a bobbin with central core cross section area of approximately 4.5mm by 4.5mm.

• E19-dat

ref
