capacitor CBB and types
CBB capacitors are non-polarized, metallized polypropylene film capacitors known for high stability, low loss, and excellent self-healing properties. Operating commonly between (63V) to (2000V), they are ideal for high-frequency, AC motor running, filtering, and power supply applications. They come in various types, including CBB22 (general film) and CBB60/CBB61 (motor run).
| Marking | Dielectric | Typical Use |
|---|---|---|
| CBB / MKP | Polypropylene (PP) | Audio, timing, AC, precision |
| MKT | Polyester (PET) | General-purpose |
| X7R | Ceramic | Decoupling, compact size |
| C0G/NP0 | Ceramic | RF, precision |
CBB81

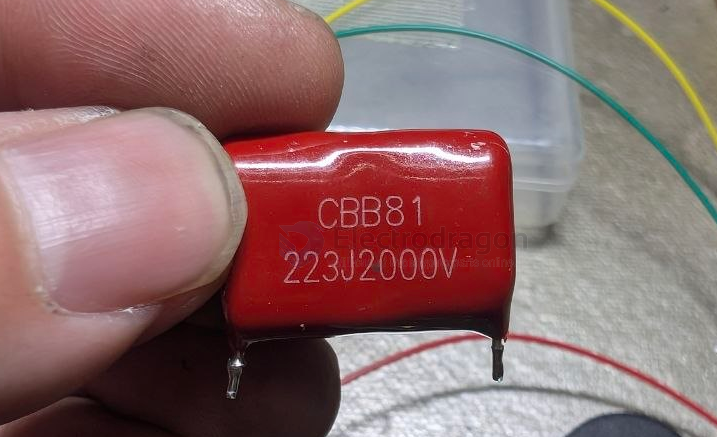

CBB81 High Voltage Metallized Polypropylene Film Capacitor
FEATURES
- Extended foil, flame retardant epoxy coated.
- Ideal for high AC current applizations, such as CRT deflection for R-F generators and pulse-forming networks.
- Coated with flame retardative epoxy resin which provides from humidity and mechanical damage.
- Temperature coefficient is negative and variety linear over the operation temperature.
SPECIFICATIONS
- Operating Temperature -40к~ +85к
- Rated Voltage 1000V, 1250V, 1600V, 2000V.DC 2000s (CR>0.1F)
- Capacitance Range 0.001 ~ 0.15ӴF
- Capacitance Tolerance ̈́+-5%, ̈́+-10%
- Dissipation Factor 0.1% (20C, 1KHz)
- Insulation Resistance
- >=25000M (CR<=0.1uF) (20к, 1min)
- >=2000s (CR>0.1uF) (20к, 1min)
CBB81 High Voltage Metallized Polypropylene Film Capacitor
